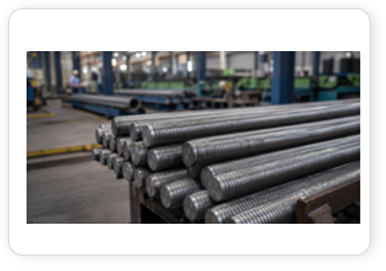

THREADED BARS
Consistent Threads for Reliable Anchoring and Fastening
Threaded Bars are solid steel rods with continuous threads designed for secure fastening, anchoring and tensioning applications. Their consistent thread profile supports reliable nut engagement, controlled assembly and dependable load transfer in structural and engineering use.
Available in carbon and alloy steel, stainless steel, duplex steel and selected high-nickel alloy options, these bars can be supplied in standard or customized diameters, thread forms and lengths. Grade and bolting options can include high-strength classes and ASTM A193/A320 families for demanding structural, industrial and high-temperature fastening applications.
Supply options can be aligned with the required grade, diameter, thread type and pitch, length, finish, quantity and end-use application, subject to final technical and commercial confirmation.
01
CONSISTENT THREADS
Uniform thread profile for secure nut engagement.
02
RELIABLE FASTENING
Dependable grip and load transfer for assemblies.
03
VERSATILE USE
Suitable for anchoring, tensioning and structural work.
04
CUSTOM SUPPLY
Grades, diameters, threads and cut lengths as required.
PRODUCT DETAILS
Specifications and Typical Applications
| Specification | Details |
|---|---|
| Product Type | Threaded Bars |
| Material |
Carbon / Alloy / Stainless Duplex / High Nickel |
| Representative Grades |
Classes 8.8, 10.9, 12.9 ASTM A193 B7, B7M, B16; ASTM A320 L7/L7M ASTM A193 B8/B8M; SS 304/316; Duplex 2205 Alloy 600/625 |
| Applicable Standards |
ASTM A193/A193M – Alloy & Stainless Steel Bolting for high-temperature/high-pressure and special-purpose service ASTM A320/A320M – Alloy & Stainless Steel Bolting for low-temperature service ISO 898-1 – Carbon & Alloy Steel bolts, screws and studs with specified property classes ASTM A276/A484 and applicable ASTM B-series specifications for stainless and high-nickel base materials |
| Diameter Range | Standard and customized diameters |
| Length | Standard or cut-to-length |
| Thread Type | Metric / agreed standard |
| Thread Pitch | Coarse / fine / as specified |
| Surface Finish | Plain / coated as agreed |
| Supply Condition | Standard or customized |
Standards listed are applicable according to material grade, product form and supply condition. Final grade, standard, dimensions and testing requirements should be confirmed at the time of enquiry/order.
TYPICAL APPLICATIONS
- Anchor bolts and foundation systems
- Structural fastening and bracing
- Tie rods and tension assemblies
- Machinery and equipment mounting
- Construction and infrastructure supports
- General industrial fastening
WHY CHOOSE THIS PRODUCT
✓ Consistent thread profile
✓ Reliable fastening and load transfer
✓ Multiple grades, diameters and thread options
✓ Standard or customized lengths and finishes
LOOKING FOR THREADED BARS?
Share your required grade, diameter, length, tolerance and quantity with our team.
